Concrete Crack Repair & Injection in the Pikes Peak Region — Stop Cracks Before Elevation and Grade Make Them Worse
A hairline crack on a Ute Pass driveway or a Broadmoor patio doesn't stay hairline long at this elevation. We diagnose whether soil movement, freeze-thaw, or drainage on a graded slab is driving it, then inject the material that actually stops it.
Hairline Crack or Structural Crack? How to Tell the Difference
Not every crack we see across the Pikes Peak region needs the same fix, and guessing wrong either wastes money on overkill or leaves a real problem untreated through another winter. A hairline crack is typically under 1/8 inch wide, holds a roughly consistent width along its length, and shows no vertical offset from one side to the other — these are usually shrinkage cracks from curing, cosmetic rather than structural.
A structural crack behaves differently. It's often 1/4 inch or wider, changes width as it runs, tracks diagonally from a corner, or has a lip where one side sits higher than the other. That pattern usually means something underneath the slab — expansive clay, a void, or repeated freeze-thaw stress — is actively working the concrete, not that it simply shrank while curing.
The test that matters most is whether the crack keeps changing. Mark both ends with a pencil and check again after spring runoff or a hard freeze. If it's grown, you're dealing with an active crack that needs its underlying cause addressed, not just a cosmetic fill — and at elevation, that underlying cause is rarely just one thing.
Two Forces Driving Cracks at Pikes Peak Elevation
The first driver is expansive clay soil. Pierre Shale and bentonite-bearing claystone sit under much of the Front Range and Pikes Peak corridor, containing montmorillonite clay that swells when wet and shrinks when dry, with documented seasonal ground movement of roughly 2 to 6 inches in affected areas. Homes are frequently built on drilled piers reaching stable bedrock, but driveways, patios, walkways, and garage slabs almost never are, so they heave and crack with the clay even when the house stays put.
The second driver is freeze-thaw cycling, and this is where our service area diverges from the Denver-metro baseline. Colorado Springs sits around 6,035 feet; Manitou Springs, Cascade, and Green Mountain Falls run roughly 6,300 to 7,800 feet; Woodland Park and Divide sit near 8,400 to 8,900 feet; Cripple Creek is close to 9,500 feet. Thinner air at those elevations changes temperature faster, and intense high-altitude sun thaws snow and ice on a slab even while the surrounding air stays below freezing. That combination produces more freeze-thaw crossings over a winter than the Denver-metro baseline — conservatively more, town by town, the higher you go. Water trapped in an existing crack expands roughly 9% in volume each time it freezes, prying the crack a little wider with every cycle.
Before recommending a repair method, we diagnose which mechanism is driving a specific crack, because pattern, location, and seasonal behavior point one way or the other, and clay-driven cracks call for a different injection material than freeze-thaw cracks do.
Epoxy Injection for Stable, Structural Cracks

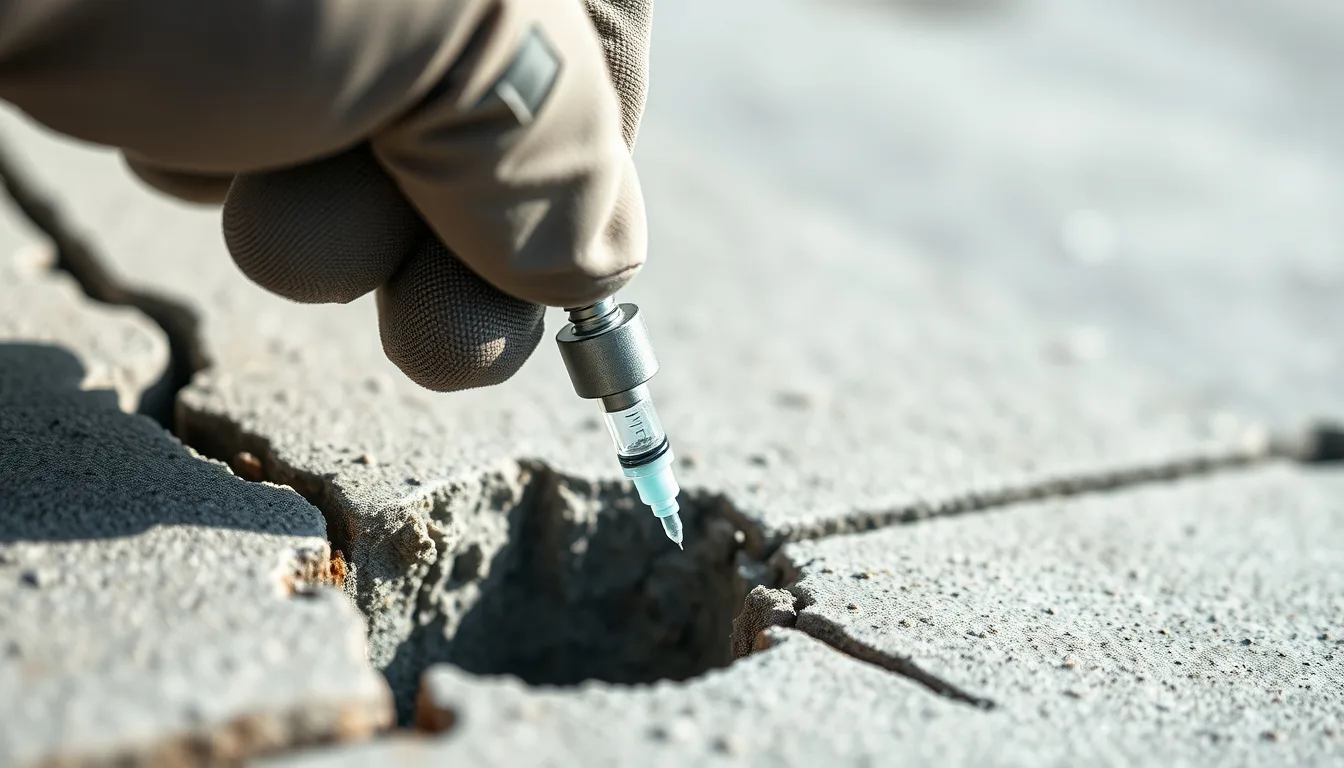

When a crack has stopped actively moving — the slab underneath is stable and the width has held steady across a season — epoxy injection is the strongest repair available. High-strength epoxy resin is injected under pressure through surface ports along the crack, filling it from the bottom up and bonding both faces back into essentially one solid piece.
Epoxy restores structural continuity, not just a sealed appearance, which is why it's our default for foundation cracks and load-bearing cracks in slabs that have finished settling. The tradeoff is that epoxy is rigid — it doesn't flex, so it's the wrong material for a crack still actively opening and closing with seasonal clay movement, since a rigid fill next to still-moving soil will just crack again right beside the repair.
Flexible Polyurethane Injection for Active Cracks and Sloped Driveways
Cracks over expansive clay in this region often never fully stop moving — they narrow and widen with the wet-dry swelling cycle year after year. Injecting rigid epoxy into a crack like that is a common mistake: the fill holds, but the concrete on either side re-cracks the following season as the soil keeps cycling underneath it.
For these active cracks, we use flexible polyurethane injection instead. It cures into a semi-rigid, elastic seal that expands and contracts with the crack rather than fighting it, keeping water out of the joint while tolerating ongoing soil movement. This matters even more on the graded driveways and hillside patios common throughout Manitou Springs, Cascade, and the Ute Pass corridor, where water sheeting off a sloped slab doesn't distribute evenly — it concentrates at low points and single drainage channels, so cracking clusters at predictable spots rather than spreading uniformly across the surface. We map those concentration points before injecting, since a crack fed by concentrated runoff needs a flexible seal that will hold up to repeated wetting, not just a one-time fill.
Surface Caulking for Hairline, Cosmetic Cracks
Hairline cracks under about 1/8 inch generally don't need pressure injection at all. A flexible polyurethane or silicone caulk applied along the surface seals the crack against water intrusion — which matters here specifically, because water sitting in an unsealed hairline crack is exactly what elevation-driven freeze-thaw cycling needs to turn a cosmetic crack into a structural one in just a couple of winters.
Surface caulking is fast, inexpensive, and the right scope for garage floor shrinkage cracks, cosmetic patio cracks, and sidewalk hairlines that show no vertical offset or width change. We'll tell you plainly when a crack only needs this level of repair rather than upselling injection it doesn't require.
What Crack Repair Costs in the Pikes Peak Region
Cost scales with crack width and method, not just linear footage. Hairline cracks under 1/8 inch typically run about $5 to $8 per linear foot for caulk or sealant. Cracks in the 1/4 to 1/2 inch range typically run $8 to $15 per linear foot for chiseled-and-filled repair. Wider structural cracks over 1/2 inch, reinforced with epoxy or flexible polyurethane injection, typically run $15 to $25-plus per linear foot — a single structural epoxy injection job commonly lands around $250 to $500 total.
We give a fixed price after an on-site inspection, not a phone-quote guess, since the same-looking crack can mean very different scope underneath depending on whether soil movement, freeze-thaw, or concentrated drainage from a sloped surface is driving it. Injection is also almost always cheaper than replacement — keeping the existing slab and its finish typically costs a fraction of tearing out and repouring a section, which is why we default to repair wherever the underlying concrete is still sound.
When Cracking Signals a Bigger Problem
Most cracks are a concrete-repair job, not an engineering job. But some patterns warrant a broader look before we do cosmetic work: multiple large diagonal cracks radiating from corners, a slab that's visibly heaved or dropped several inches, doors and windows sticking in the same season the cracking appeared, or cracking that keeps returning in the same spot after repair.
On graded properties across the foothills and mountain corridor, a retaining wall or terrace failing above a slab, or a single drainage channel dumping all its runoff onto one section of concrete, can also be the real cause behind repeated cracking. In those cases, correcting the grading or drainage — and in rare cases bringing in a broader structural look — has to happen before crack repair will actually hold. We'll tell you honestly if that's what we're seeing rather than injecting a crack that's going to open right back up.
Get a Free Crack Diagnosis
Send us a couple of photos of the crack and your town, or book a free on-site inspection anywhere across the Pikes Peak region. We measure the width, check for movement, and tell you plainly whether you need caulk, epoxy, or flexible injection — then give you a fixed price before any drilling starts.
Call 844-967-5247 or email josh@contractorschoiceagency.com. If the crack is one symptom of a bigger heave, settlement, or drainage problem, we handle that too — one visit, one honest diagnosis.
We serve Colorado Springs, Manitou Springs, Woodland Park, Cascade, Green Mountain Falls, Fountain, Monument, Palmer Lake, Divide, and Cripple Creek — every one of these towns sees the same expansive clay and elevation-driven freeze-thaw combination behind this kind of cracking.
Crack Repair & Injection FAQs
Straight answers before we drill
Hairline cracks typically run about $5–$8 per linear foot for caulk or sealant, $8–$15 per linear foot for chiseled structural filler, and $15–$25-plus per linear foot for epoxy or flexible polyurethane injection on wider structural cracks. A single structural epoxy injection job commonly lands around $250–$500.
Most cracked slabs can be saved — the crack itself is rarely the structural problem, it's usually a symptom of soil movement, freeze-thaw stress, or concentrated drainage on a sloped surface. Injecting and sealing the crack, and addressing the underlying cause, typically restores the slab for years without a tear-out.
Towns across the Pikes Peak region sit well above the Denver-metro baseline — Colorado Springs around 6,035 feet, Woodland Park and Divide near 8,400 to 8,900 feet, Cripple Creek close to 9,500 feet. Thinner air changes temperature faster, and intense high-altitude sun thaws ice on a slab even while the surrounding air stays below freezing, which conservatively means more freeze-thaw crossings over a winter than the Denver baseline. Each cycle, water trapped in a crack expands about 9% as it freezes, widening it a little more.
On graded driveways common throughout Manitou Springs, Cascade, and the Ute Pass corridor, water sheeting off the slope doesn't distribute evenly — it concentrates at low points or a single drainage channel, so cracking clusters at that predictable spot rather than spreading across the surface. Repairing the crack without addressing where the water is concentrating usually means it comes back.
Yes — crack injection and interior garage floor work can be done in cold weather with the right materials, unlike exterior resurfacing or new-material curing, which needs temperatures reliably above freezing. Spring remains the highest-demand season, since that's when the winter's freeze-thaw damage becomes visible and repairs can be finished before the next winter starts the cycle again.
